FAG HS7009-C-T-P4S-UL main spindle bearing 45x75x16mm,P4 Grade,steel ball,in stock

Place of Origin : Germany

Brand Name : FAG

Model Number : HS7009-C-T-P4S-UL

Certification : ORIGINAL

Price : NEGOTIATION

Packaging Details : Standard carton

Delivery Time : 2 days

Payment Terms : T/T

Supply Ability : 1000PCS/MONTH

MOQ : 2PCS

Contact Now

FAG bearings HS7009-C-T-P4S-UL adjusted, in pairs or sets, contact angle α = 15°, restricted tolerances, steel ball
d: 45mm D: 75mm B: 16mm
Type:	HS	Bearing with small balls steel balls
Dimension series:	70	Medium series
Dimension（dxDxh）		45x75x16mm
Contact angle:	C	C =15° E = 25°
Cages:	T	Plastic fiber cage, outer ring guided
Precision:	P4S	P4S FAG standard, reference to DIN620, higher than P4
Bearing arrangement:	U	single bearing, universal assemble
Preload:	L	light preload

HS7009-C-T-P4S-UL High Precision Ball Bearing HS7009-C-T-P4S-UL Machine tool main spindle bearing

HS7009-C-T-P4S-UL FAG High Speed Angular Spindle Bearing, Ball Bearing is Super precision Angular with 15 degrees contact angle and Phonetic cage, bearing is P4 quality and made in Germany

Item: HS7009.C.T.P4S.UL FAG Ball Bearing，FAG machine tool main spindle bearing

Type: FAG Angular Spindle Ball Bearing

ball: steel ball

Quality: P4 Grade

Dimensions: 45mm x75mm x16mm /Metric

ID (inner diameter)/Bore: 45mm

OD (outer diameter): 75mm

Width/Height/thickness: 16mm

Size:45 x 75 x 16 mm

Quantity: One Bearing

Dynamic load rating Cr:12900 N

Static load rating Cor: 12200 N

Limiting Speed:

Grease Lubrication: 24000 RPM

Oil Lubrication: 38000 RPM

DU :Duplex set, universal bearings

TU:Triplex set,universal bearing

QY:Quadruplex set,universal bearing

PU:Quintuplex set,universal bearing

The delivery time: in stock, within one day after getting the order

Package:standard carton or standard wooden case

Shipping term:TNT,FEDEX,DHL Express or your required.

FAG HS7009-C-T-P4S-UL main spindle bearing 45x75x16mm,P4 Grade,steel ball,in stock

Product Tags:

fag HS7009-C-T-P4S-UL bearing

HS7009.C.T.P4S.UL.bearing

HS7009CTP4SUL spindle bearing

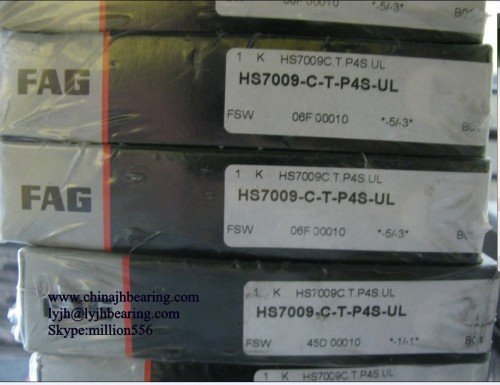

FAG HS7009-C-T-P4S-UL main spindle bearing 45x75x16mm,P4 Grade,steel ball,in stock Images
